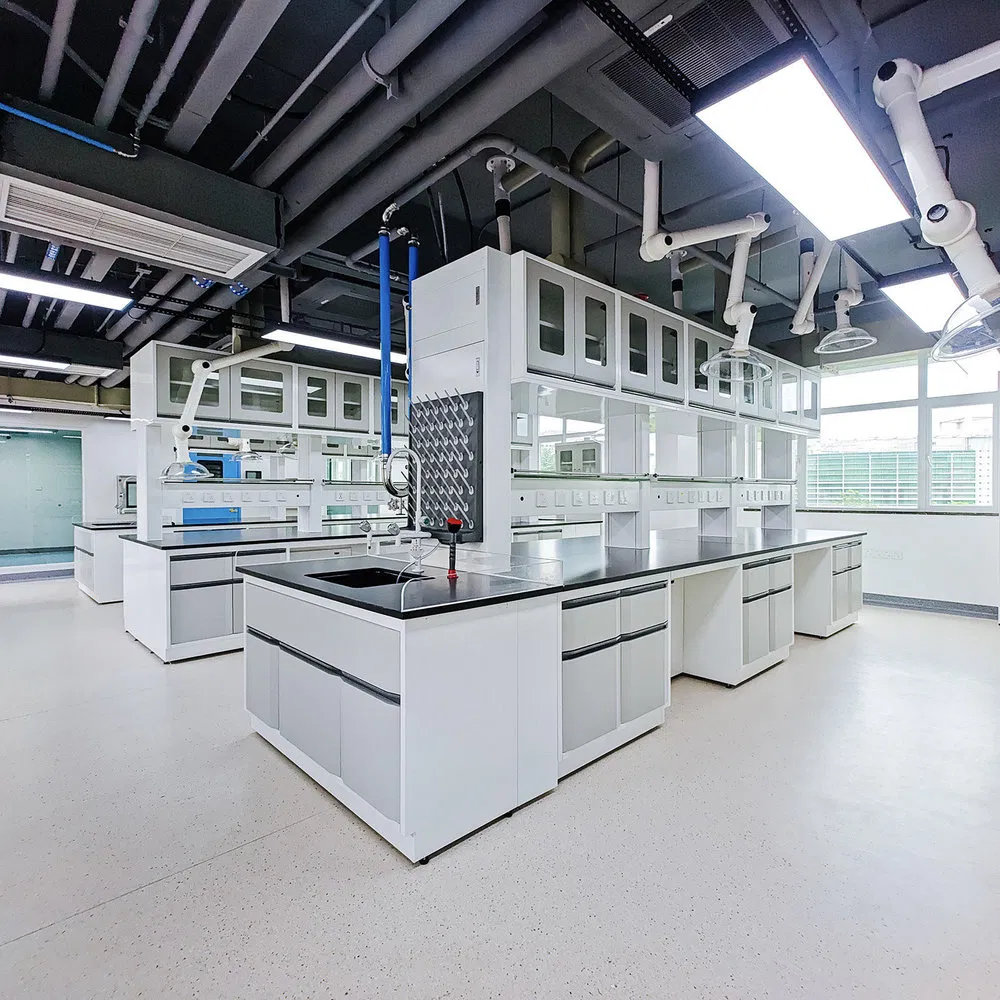

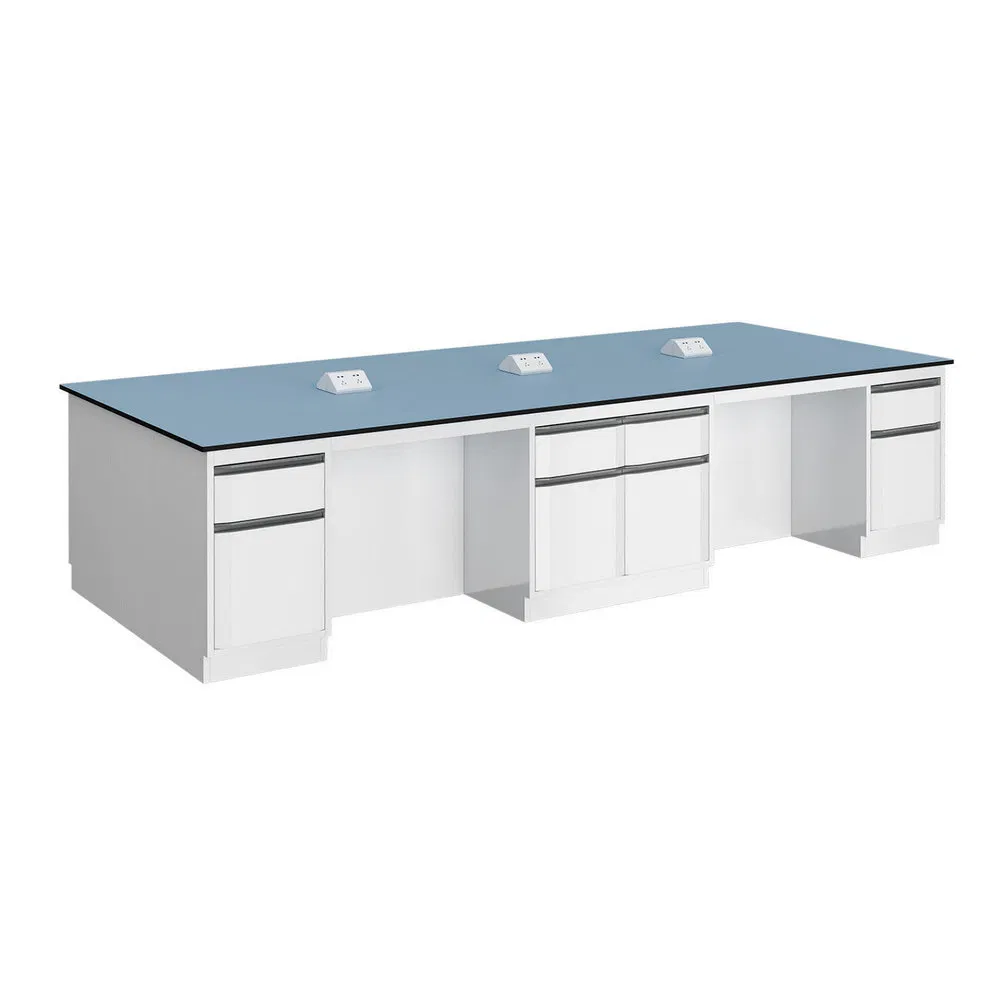

Antibacterial Properties Durable All-Steel Floor Mounted Lab Work Bench

Basic Info

Model NO.530B Island Bench

UsageHospital, School, Company, Research Institute

Product NameLab Bench

Bench TopCeramic/Physical and Chemical Board

Load CapacityMinimum 250 Kg Per Linear Meter

DimensionsL*1500*850mm / L*900*850mm / L*750*850mm

Surface Finish75 μm Epoxy Powder Coating

CustomizedAccept OEM & ODM

Product Description

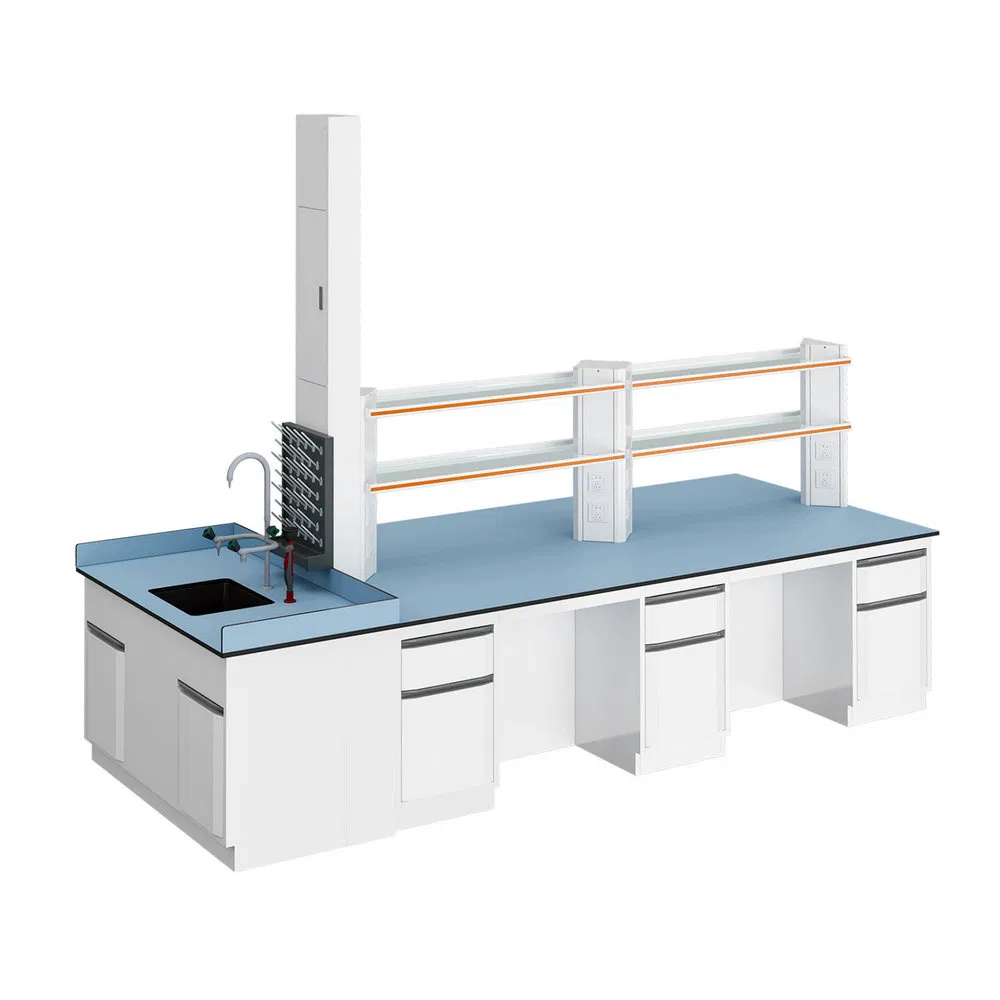

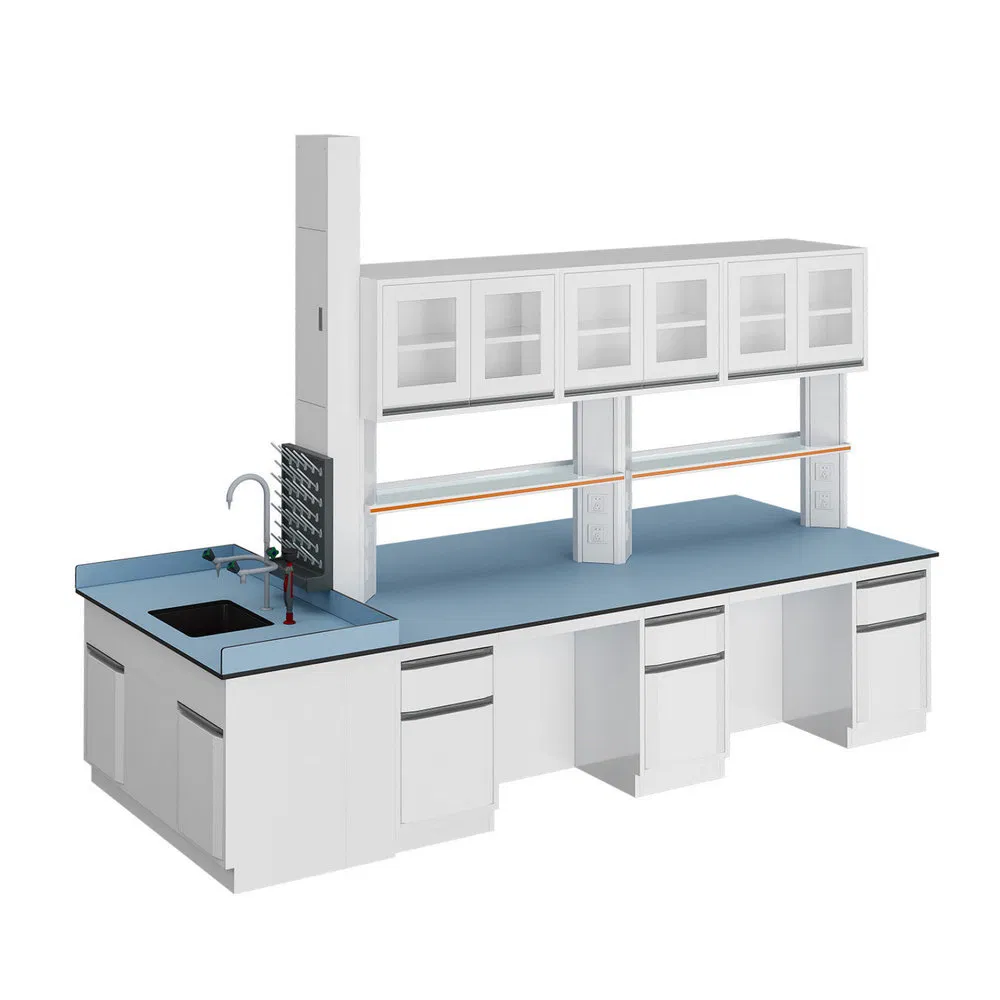

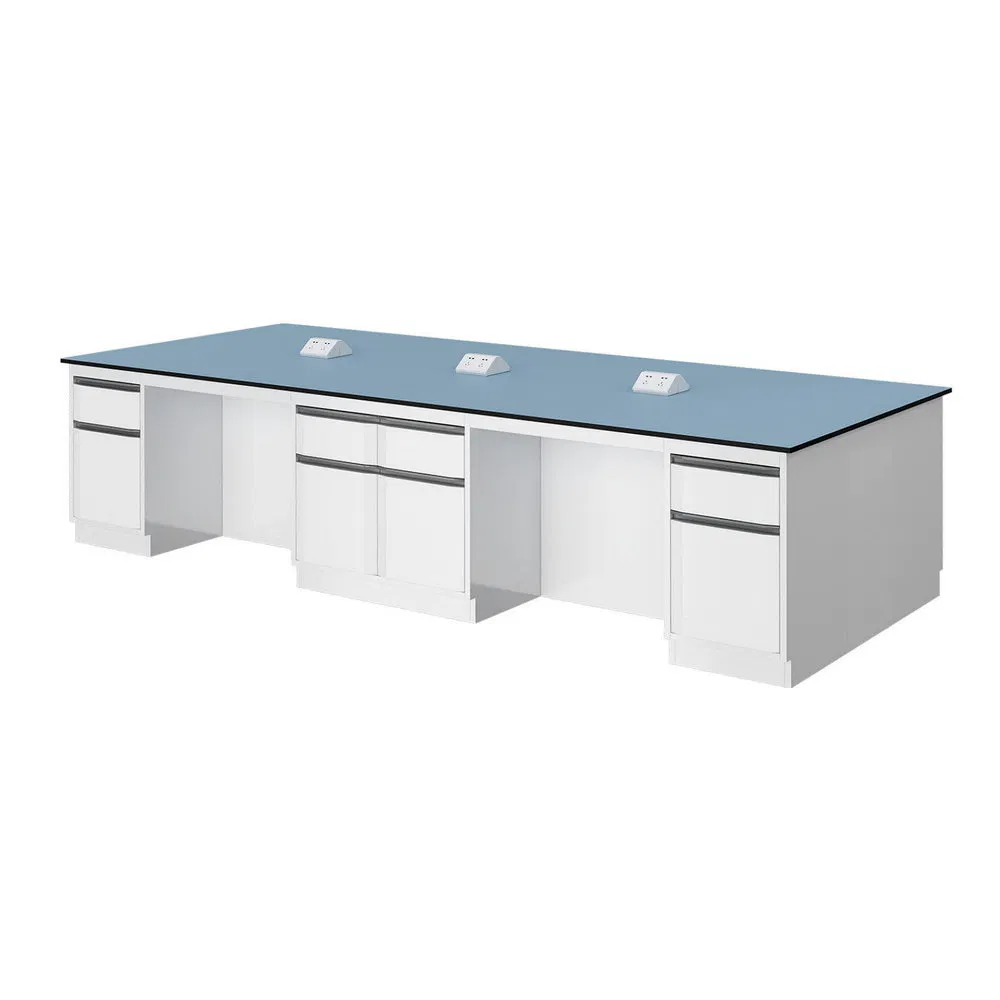

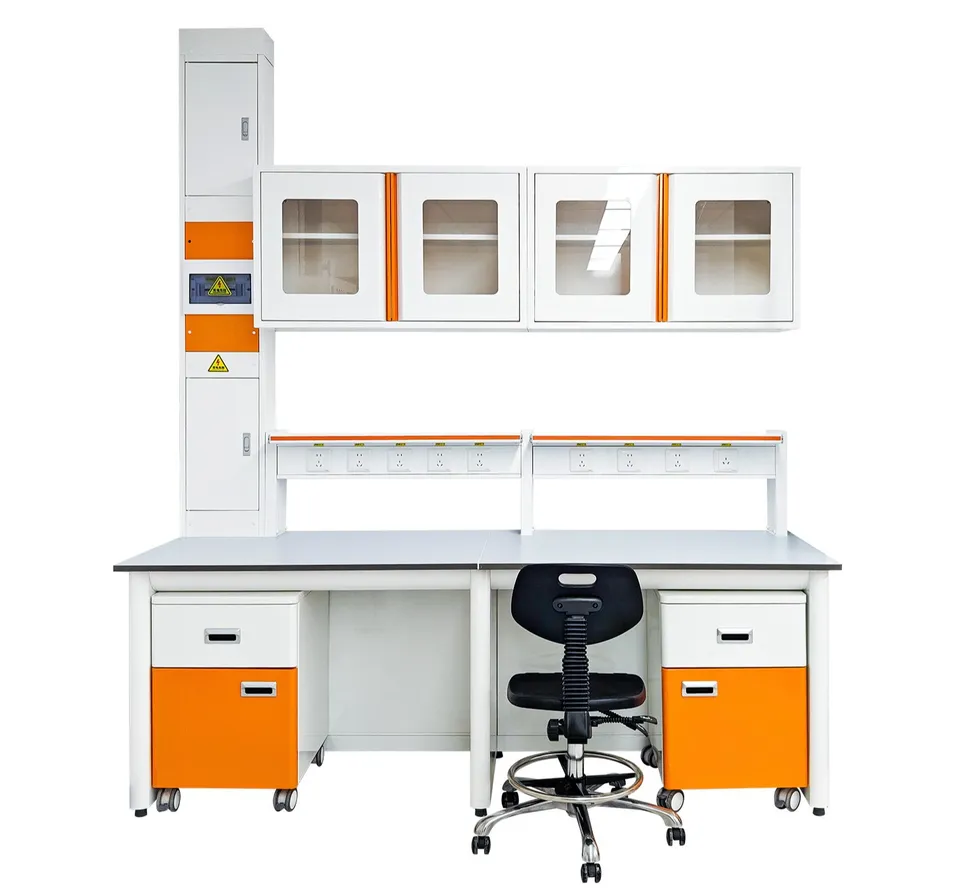

PROFESSIONAL LABORATORY BENCH - MODULAR DESIGN

Our Laboratory Bench (also known as Lab Bench, Instrument Bench, or Lab Workbench) is engineered for demanding laboratory environments across chemical, biological, and pharmaceutical industries.

Featuring modular design and premium cold-rolled steel construction, this corrosion-resistant lab bench delivers exceptional stability and durability. Built with 1.0mm high-quality steel sheet and 75μm epoxy resin powder coating, ensuring superior chemical resistance and easy maintenance.

Technical Parameters

Material Component	530B Series (All-Steel)	630B Series (Steel-Aluminium)	730D Series (High-End All-Steel)
Main Structure	Cold-Rolled Steel Plate	Cold-Rolled Steel + Aluminum Profile	Cold-Rolled Steel Plate

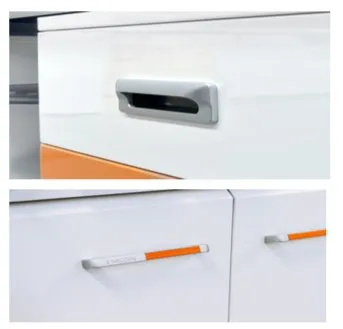

Handle Design	One-Piece Forming Steel	One-Piece Forming Steel	Concealed Aluminum Alloy
Hinge System	DTC 105° Hinge	Taval 105° Buffer Hinge	Taval Buffer Hinge

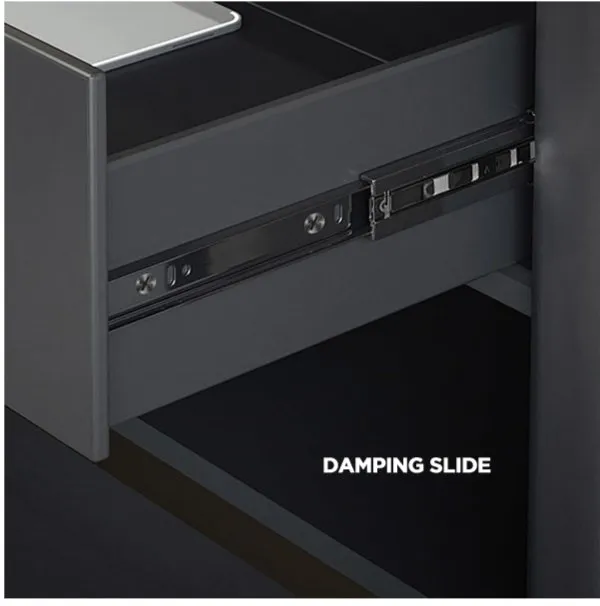

Slide Rail	DTC 16" Three-Section Rail	Taval 16" Buffer Guide Rail	Taval Buffer Guide Rail
Bench Top Options	Ceramic / Physical And Chemical Board / Epoxy Resin / Trespa / Marble

Detail Images

Countertop Selection

Multiple material options including Phenolic Resin (12.7mm-25.4mm), Epoxy Resin (16-25mm), Ceramic (15-25mm), and Granite/Marble (20mm).

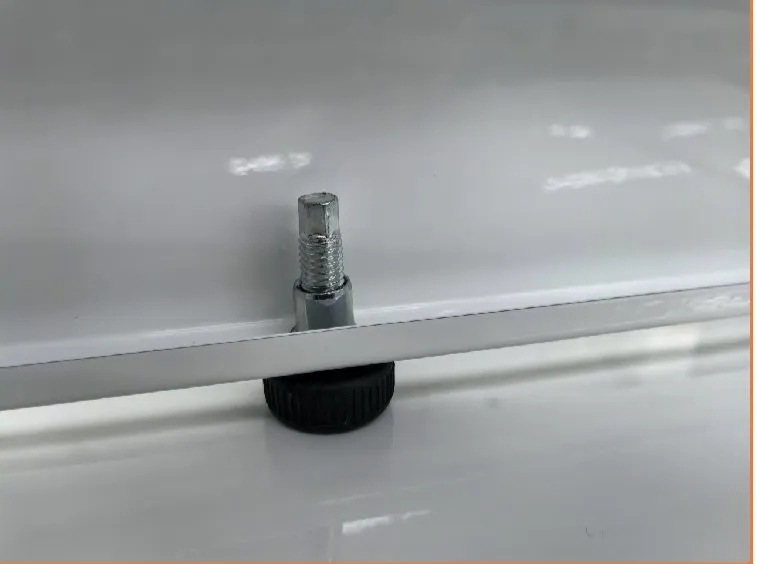

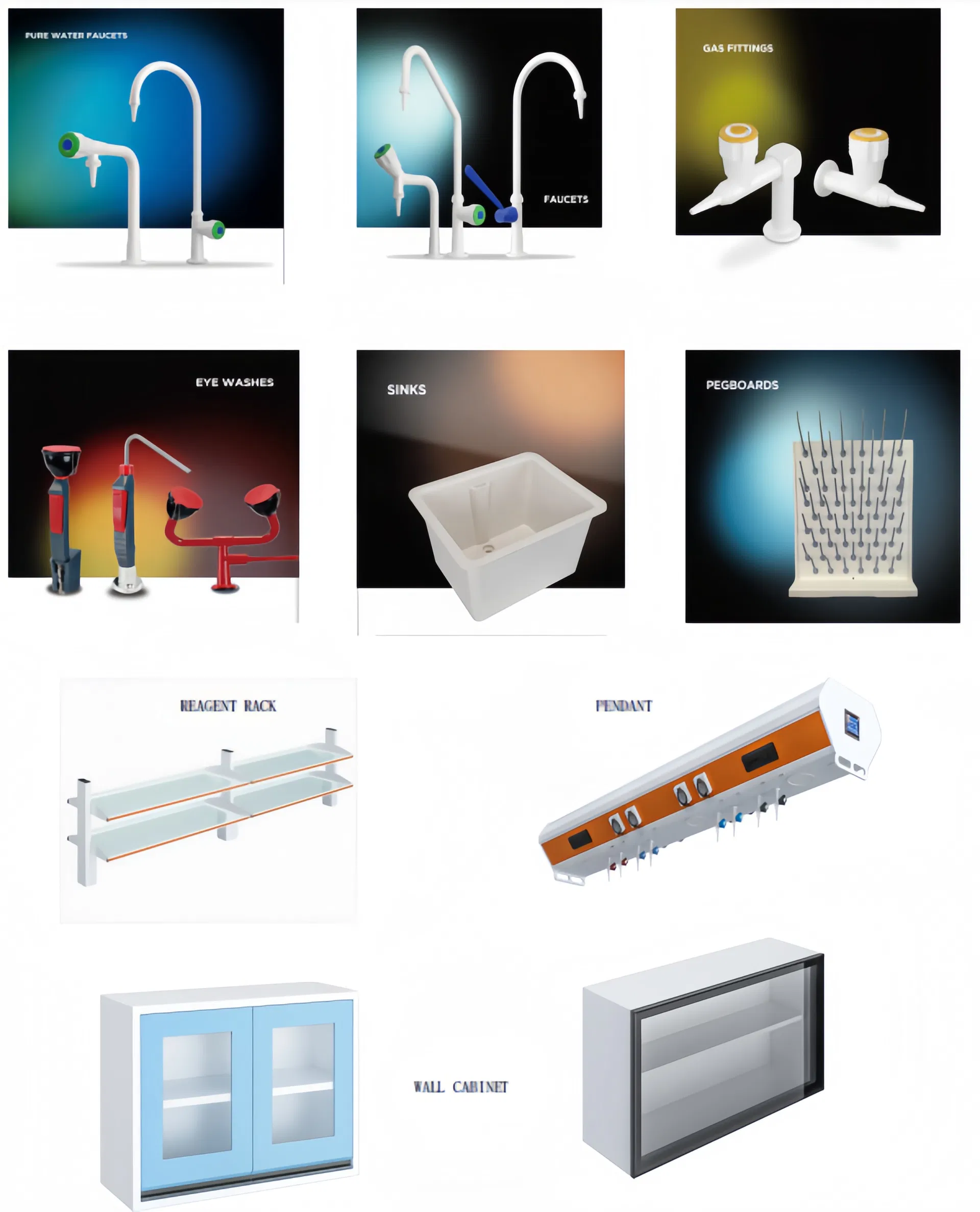

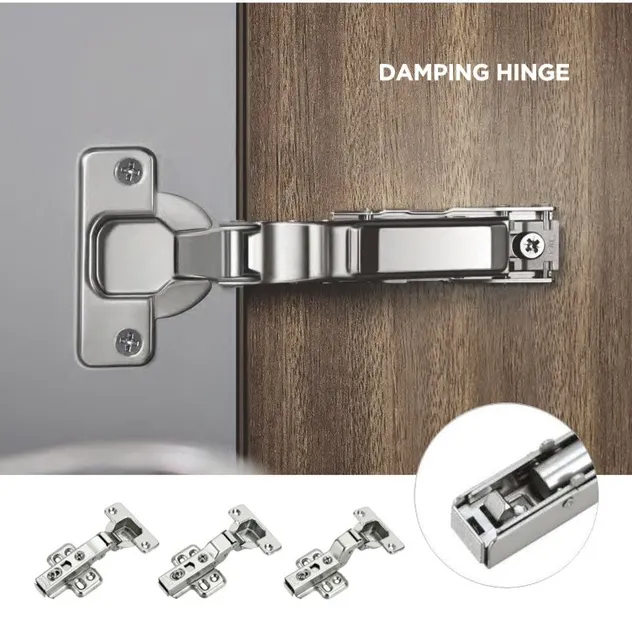

High-Quality Hardware Accessories

Functional Advantages

Superior Corrosion Resistance

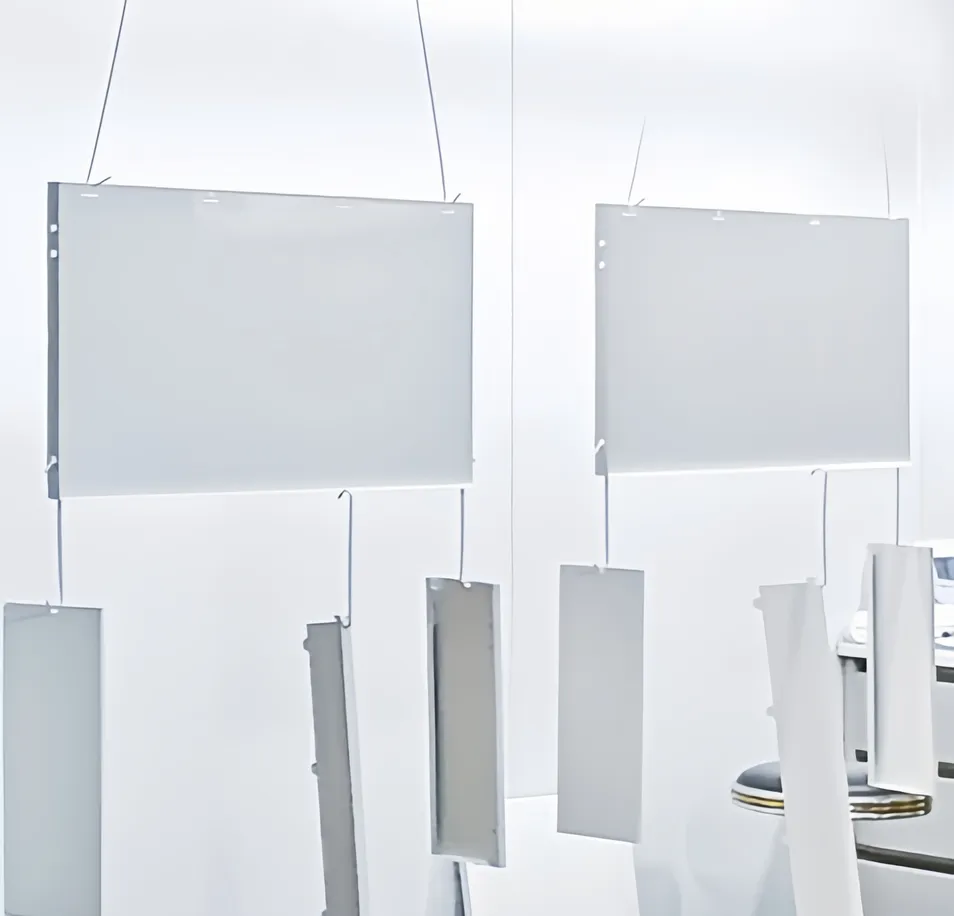

Coated with 75μm epoxy resin powder, delivering outstanding resistance to acids, alkalis, and chemical agents.

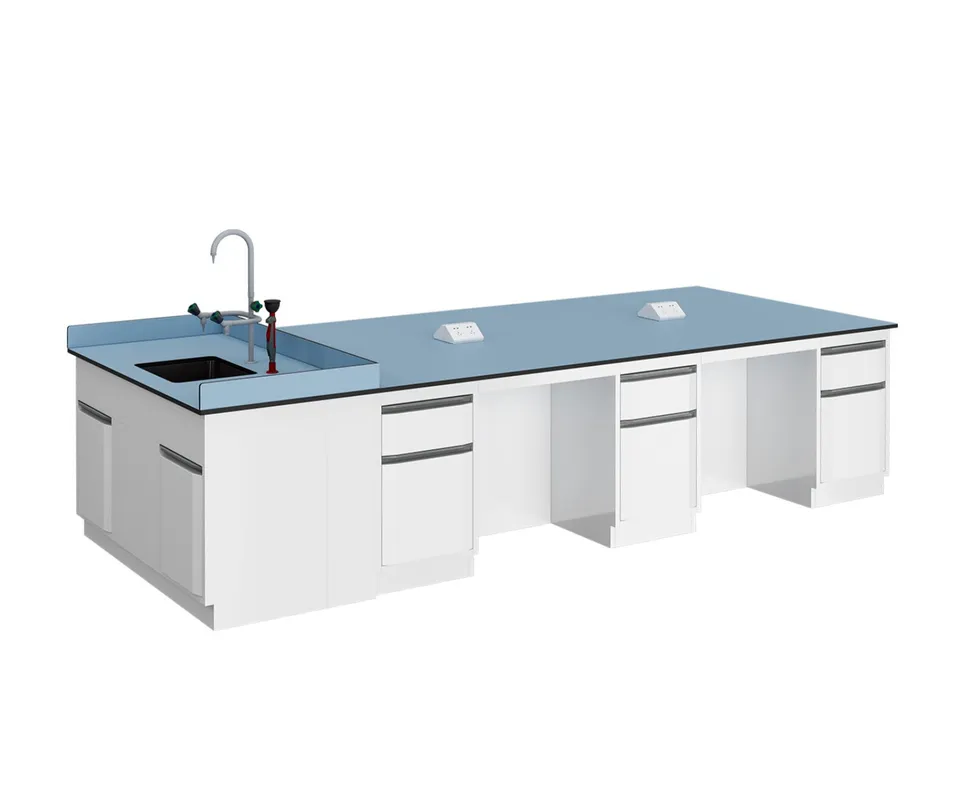

High Load-Bearing Capacity

Minimum capacity of 250kg per linear meter, ensuring stable support for centrifuges and analytical equipment.

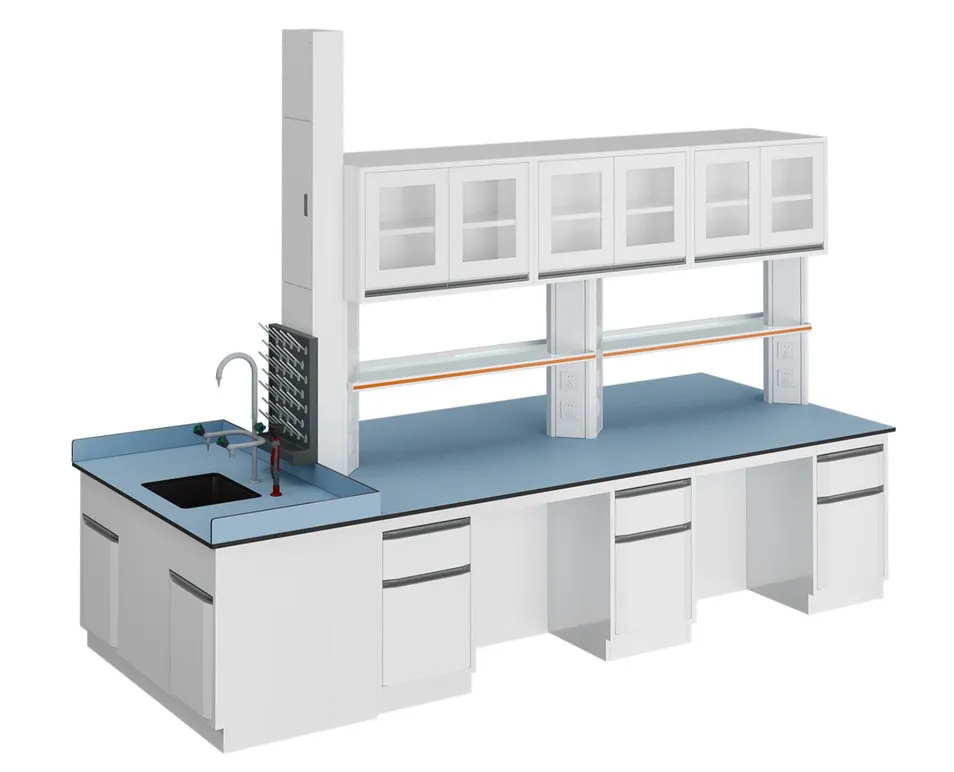

Intelligent Ventilation

Optional systems precisely regulate airflow and environmental parameters for sensitive experiments.

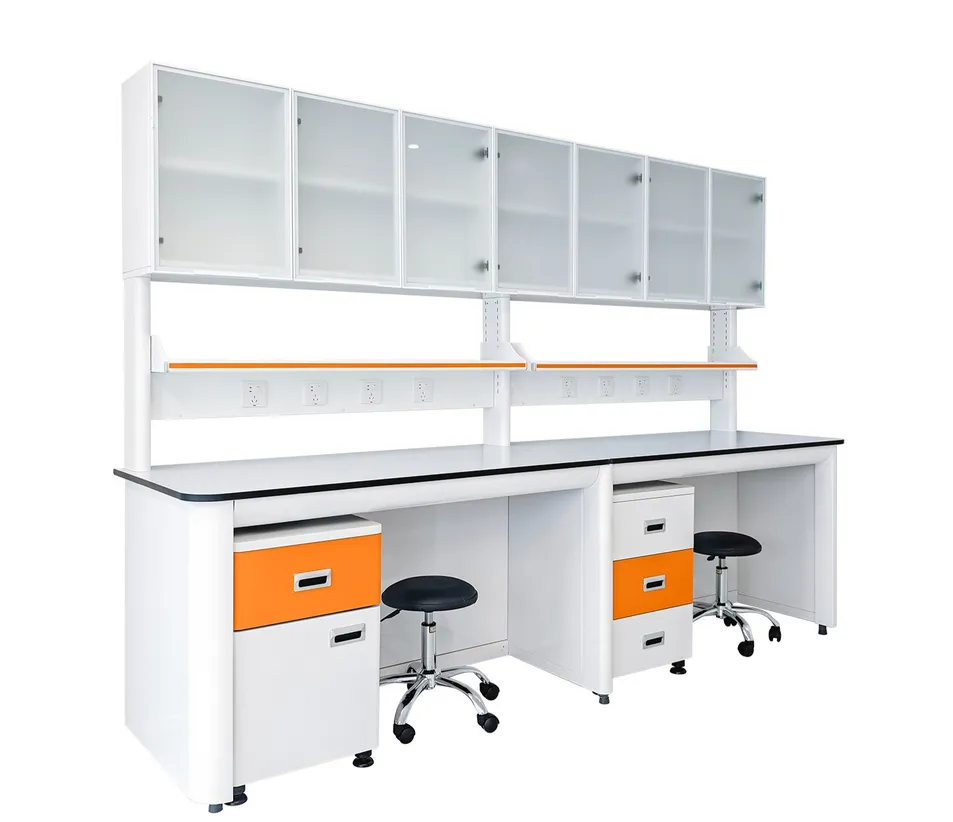

Seamless Splicing

Advanced corner splicing technology eliminates weld failure and ensures superior structural strength.

Core Applications

BASIC EXPERIMENTAL OPERATIONS: Essential platform for sample preparation, reagent mixing, titration, and daily laboratory workflows.

MULTI-DISCIPLINARY RESEARCH: Widely deployed in pharmaceutical R&D, university teaching labs, and industrial quality inspection facilities.

ANALYTICAL EQUIPMENT SUPPORT: Ideal for spectrophotometers, chromatography systems, and precision weighing equipment.

Frequently Asked Questions

What are the distinctions between your Series 5, 6, and 7 lab benches?

The 5 series is a cost-effective all-steel structure with splicing corners. The 6 series uses a steel-aluminum hybrid structure with upgraded buffer accessories and ergonomic design. The 7 series features a curved edge design, no frame support within 3m for more legroom, and premium accessories.

What certifications do your laboratory products hold?

Our products are fully certified with ISO9001, ISO45001, and ISO14001. Additionally, lab benches are compliant with SEFA-8M standards and fume hoods meet EN14175-3-2019 requirements.

What is the standard lead time for order delivery?

Typically, delivery takes approximately 30 working days after order confirmation. This varies based on the specific material requirements and complexity of the production process.

What kind of warranty and service do you provide?

We provide a 1-year product warranty along with 24-hour online technical support to ensure your laboratory operations run smoothly.

Can the lab bench dimensions be customized for specific room layouts?

Yes, while we have standard dimensions (L*1500*850mm, etc.), we offer full OEM and ODM customization to fit your specific laboratory space and functional requirements.

What is the load-bearing capacity of the work benches?

Our laboratory workbenches are designed for heavy-duty use with a minimum load-bearing capacity of 250 Kg per linear meter, suitable for most analytical instruments.
