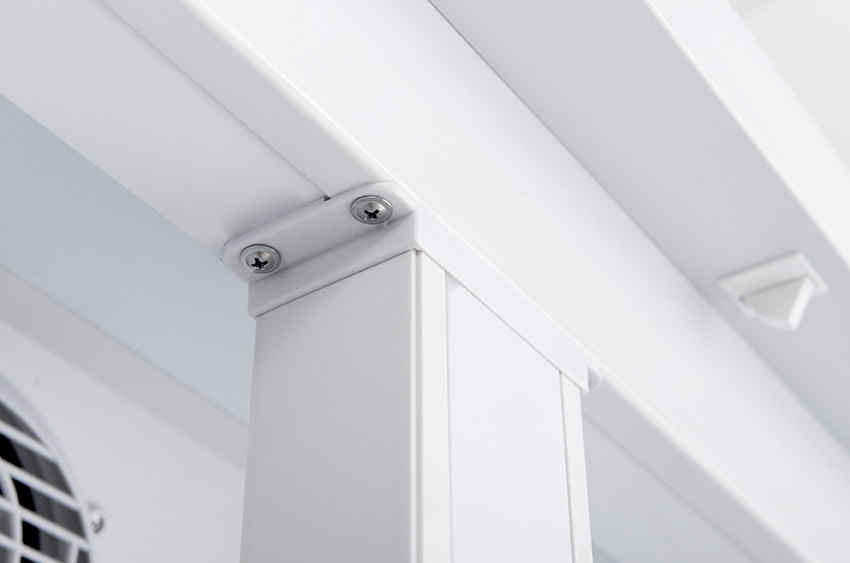

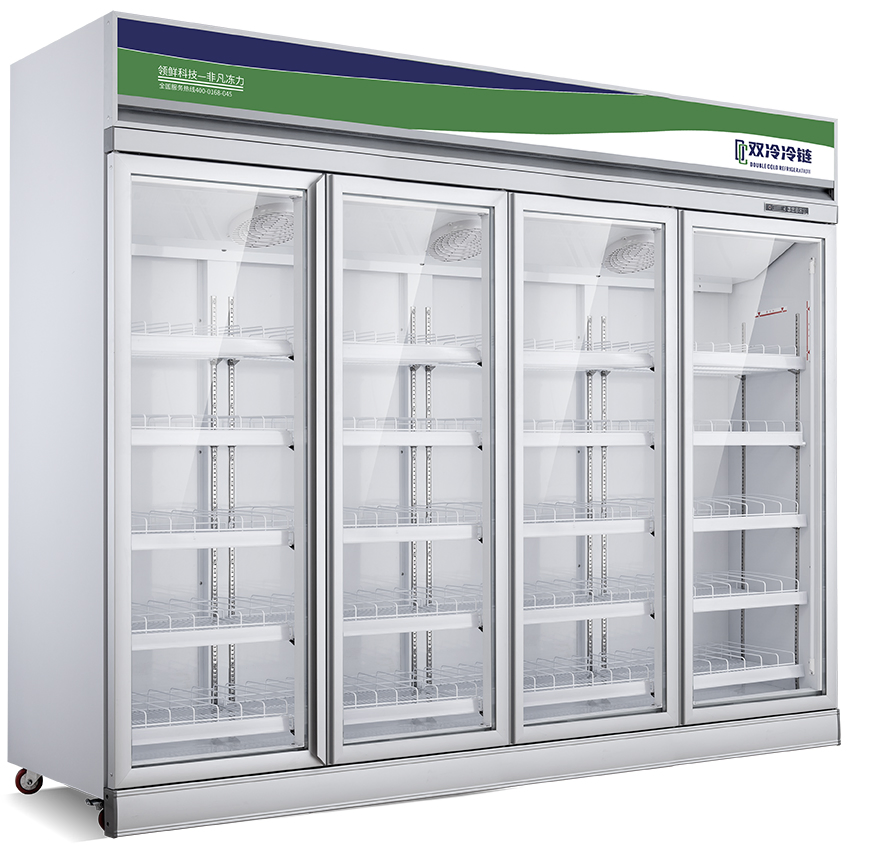

Top-Mounted Four-Door Refrigerated Display Cabinet (Model: LS2500CFA2H/L)

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Overview & Basic Info

Model NO.
LS2500CFA2H/L
Capacity
2200 L
Door Number
Double Doors
Type
Air Cooling
Door Type
Sliding Door
Power Source
Electricity
Temperature Control
Smart Thermostat
Temperature Type
Single-temperature
Defrost Type
Frost-Free
Function
Cold Storage & Freezing
Certification
ISO, EMC, ETL
Specification
2500X735X2090 (mm)
Origin
Made in China
Production Capacity
50000PCS/Year
❄️

Product Description

LS2500CFA2H/L Commercial Quick Freezer is designed for the high-demand environments requiring efficient display and refrigeration. Features include Intelligent Controls, LED Lighting, and a clean White Cabinet finish.

  • The split unit design (similar to external air conditioners) allows for outdoor installation, ensuring silent indoor operation.
  • Excellent heat dissipation as the condenser is placed outdoors, strengthening the refrigeration performance.
  • Flexible box placement within your interior space.

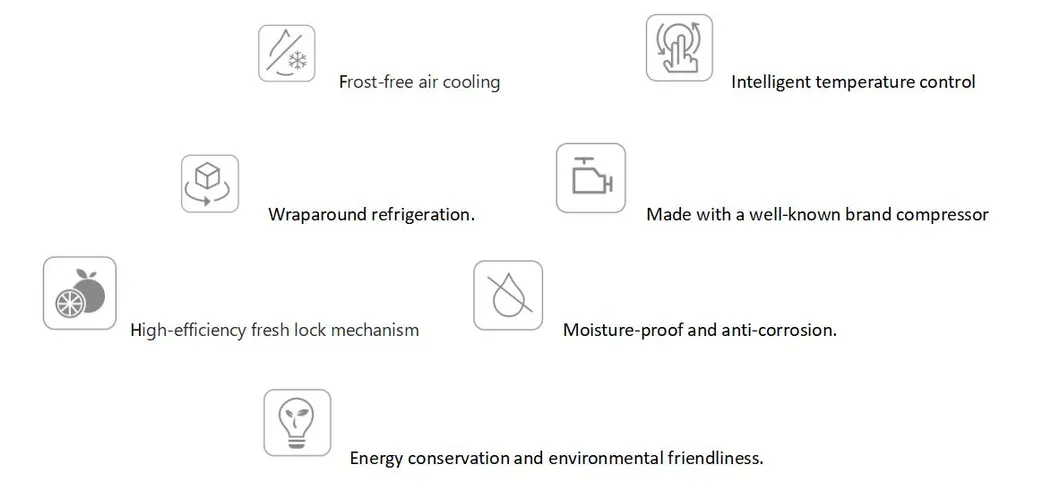

Performance Display
🚀

Key Features

  • Imported R290 compressor: Fast, efficient, and quiet with large cooling capacity.
  • Hot gasification frost removal: Thorough cleaning from the inside out.

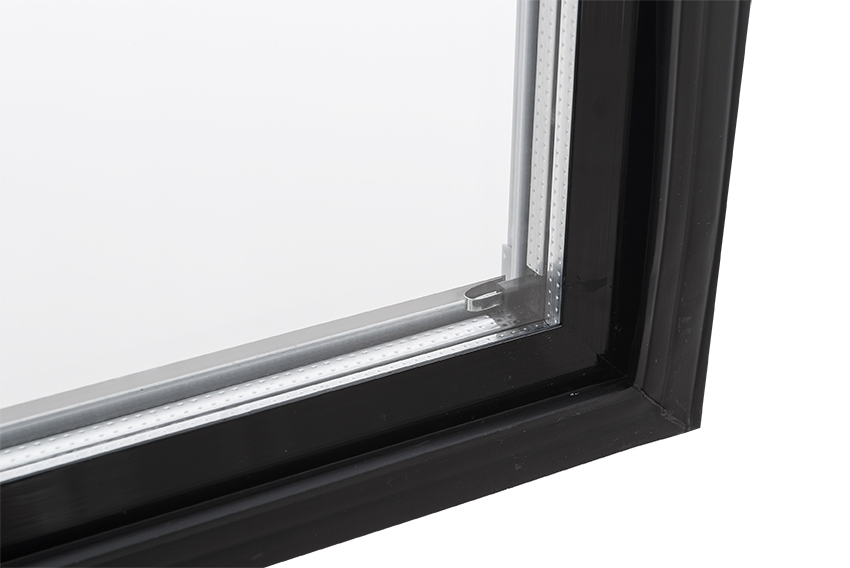

  • Double hollow three-layer glass: Optional electric heating defogging to keep visibility clear and dry.

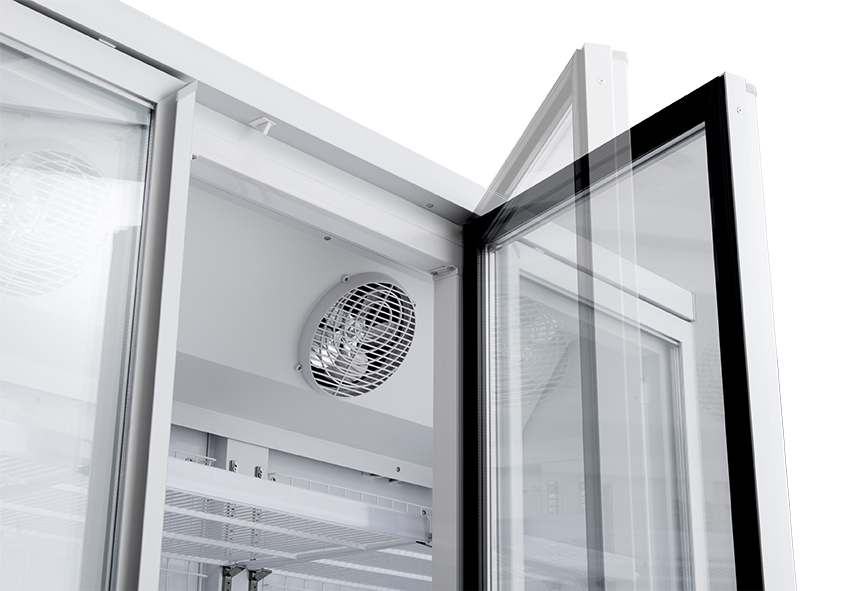

  • Bridge design: Isolates cold air effectively; evaporator fan stops when doors open to prevent energy loss.
  • Cyclopentane microcellular foaming: High thermal insulation and environmental protection.
  • Back plastic protection network: Smooth air ducts for uniform temperature distribution.
📊

Technical Specifications

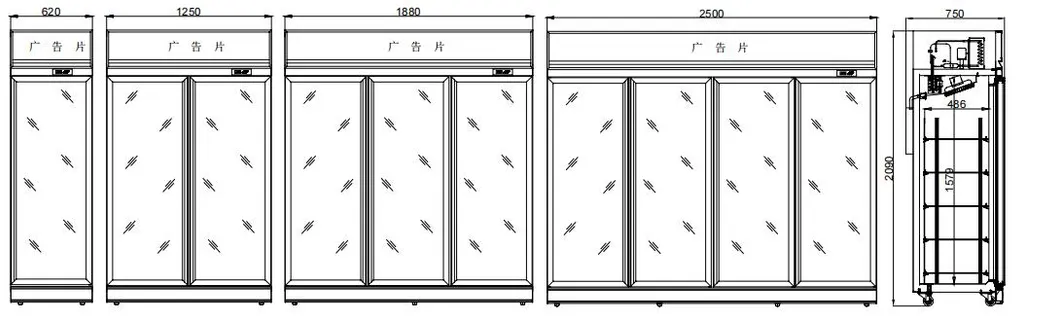

Specifications Diagram
Product Name Model Dimension (W x D x H mm) Volume (L) Power (W) Temperature (ºC) Defrost Way
Single-door Refrigerated Display LS620CFA2H/L 620*735*2090 480 L 300 W 0ºC ~ 8ºC Off-cycle defrost
Double-door Refrigerated Display LS1250CFA2H/L 1250*735*2090 1050L 480 W 0ºC ~ 8ºC Off-cycle defrost
Three-door Refrigerated Display LS1880CFA2H/L 1880*735*2090 1600 L 1080 W 0ºC ~ 8ºC Off-cycle defrost
Four-door Refrigerated Display LS2500CFA2H/L 2500*735*2090 2200 L 1240 W 0ºC ~ 8ºC Off-cycle defrost
📦

Packaging & Shipping

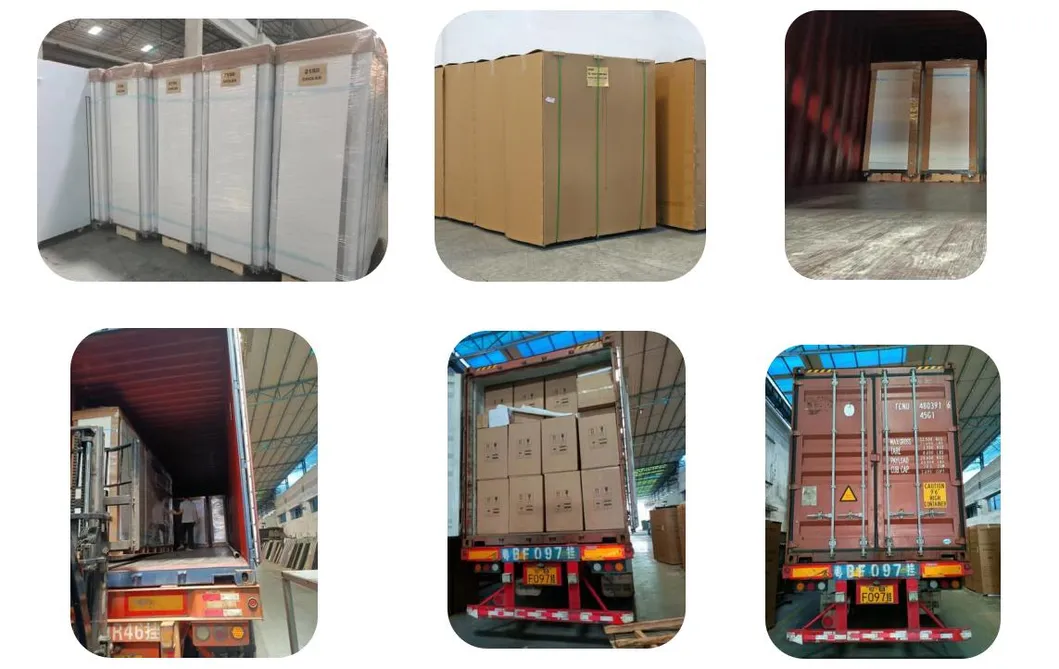

Packaging Detail 1 Shipping Logistics
🛠️

After Sales Service

Service Guarantee
🏢

Showroom & Workshop

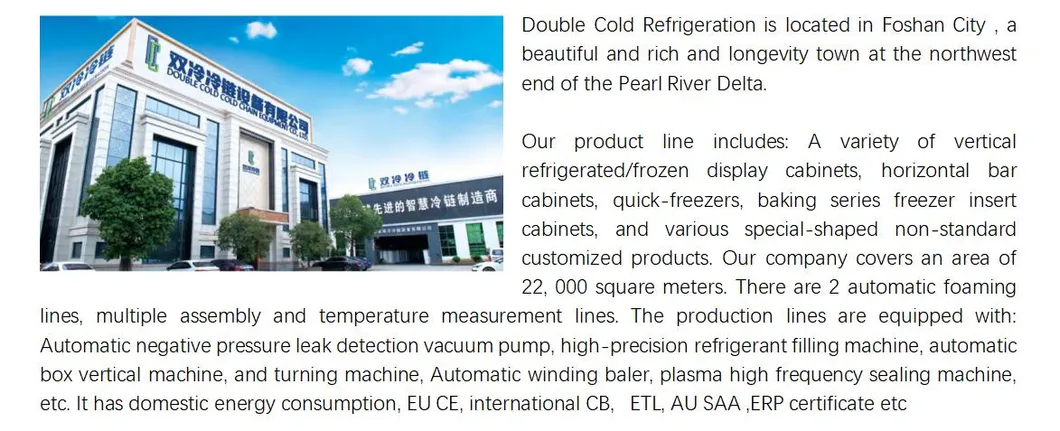

Facility Overview

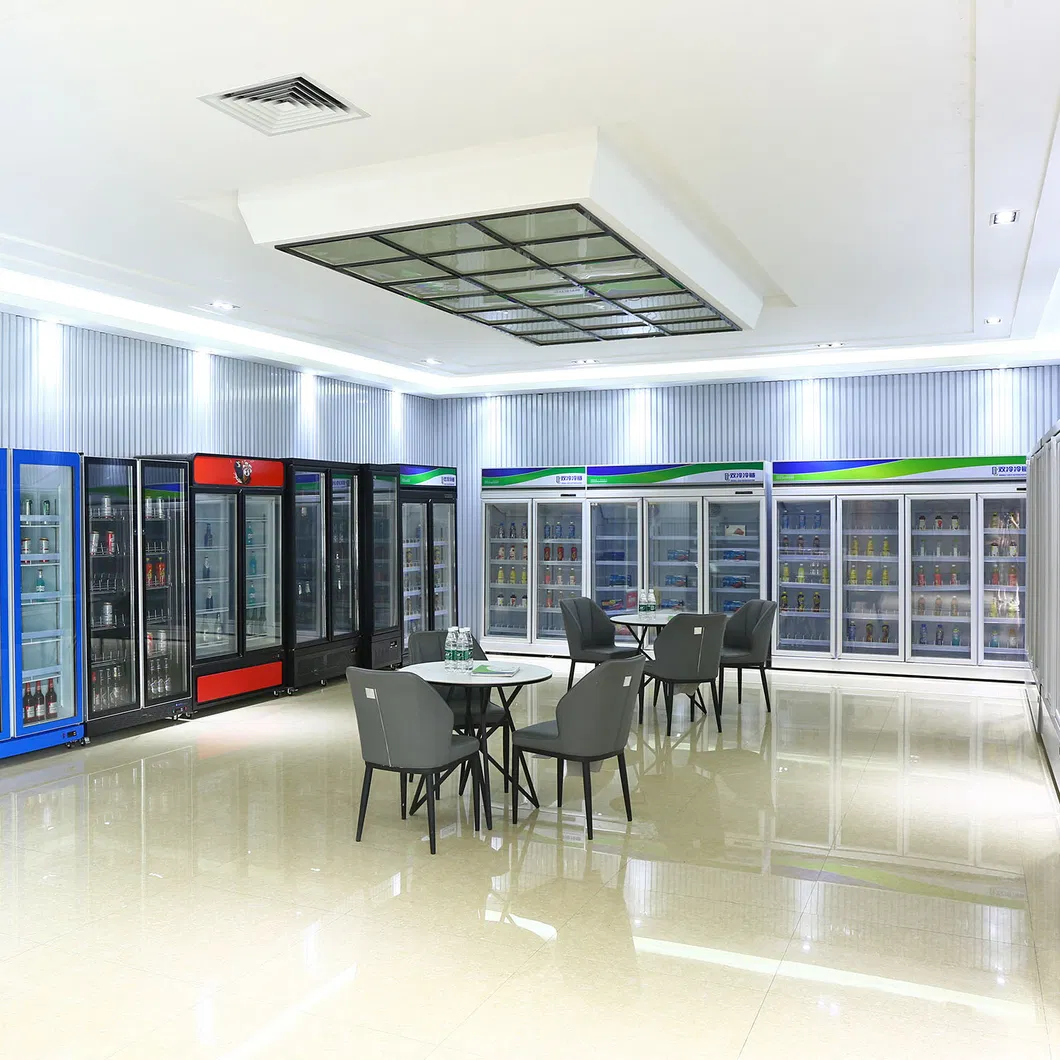

Showroom View Workshop Unit Production Line

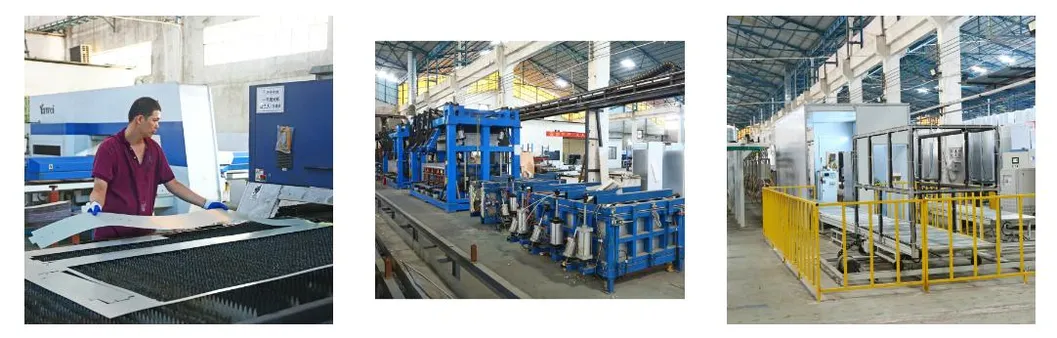

Workshop Wide
⚙️

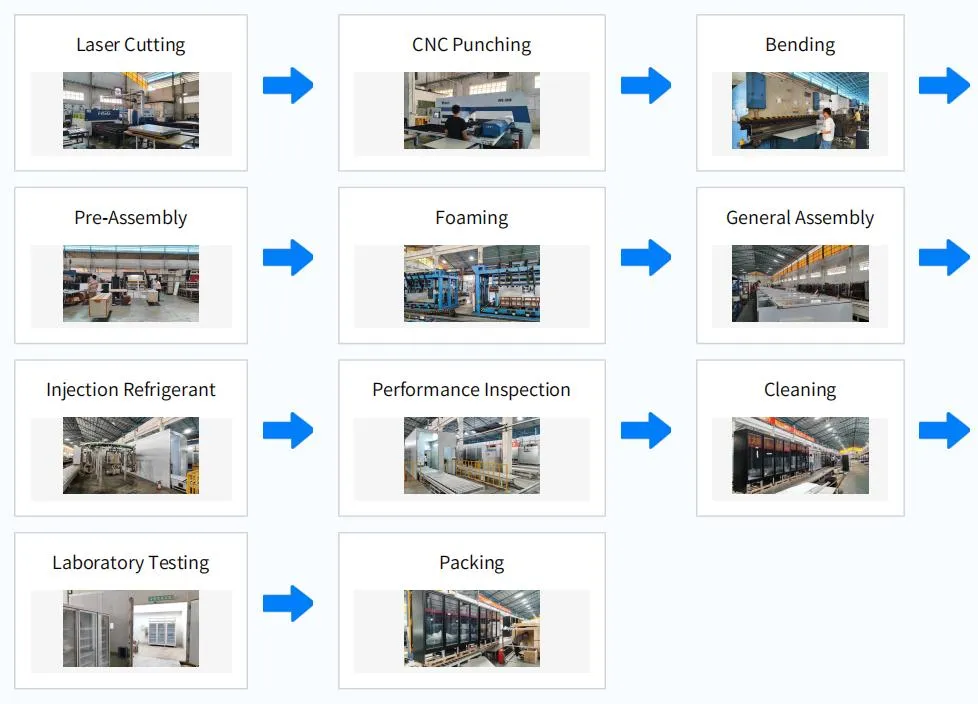

Production Process

Process Map
📜

Certifications

ISO EMC ETL Certificates

Frequently Asked Questions

What is the capacity of the LS2500CFA2H/L model?
The LS2500CFA2H/L model features a large capacity of 2200 liters, making it ideal for high-volume commercial storage.
What cooling technology is used in these cabinets?
These units utilize Fan Cooling (Air Cooling) technology with an imported R290 compressor for efficient and rapid refrigeration.
Does the glass door prevent condensation?
Yes, the units are equipped with double hollow three-layer glass, and an electric heating defogging system can be installed to ensure the glass remains clear.
What is the temperature range for these display cabinets?
The temperature range is adjustable from 0ºC to 8ºC, suitable for a variety of chilled products.
What are the power requirements?
The equipment operates on a standard voltage/frequency of 220-240V at 50Hz.
Are these products certified for international standards?
Yes, the products carry ISO, EMC, and ETL certifications, ensuring they meet rigorous safety and quality standards.
