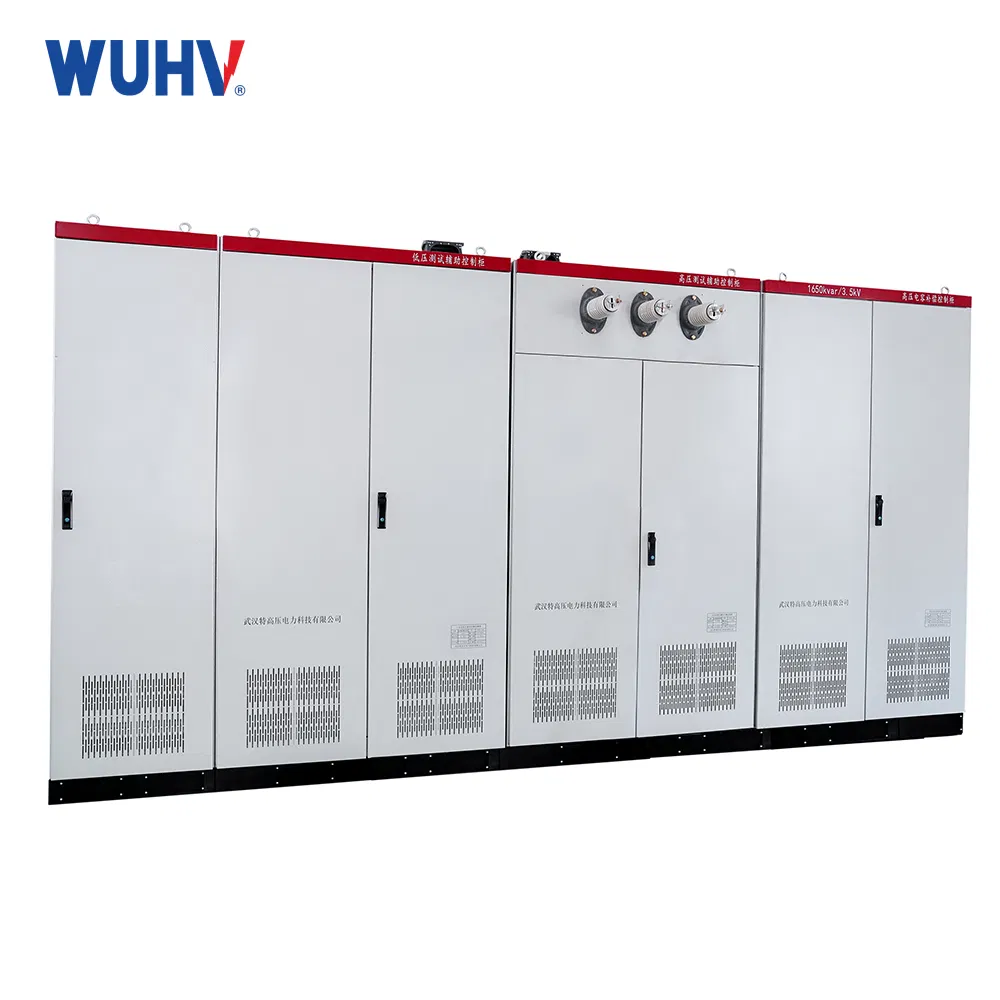

Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
1 / 5
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench
Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench

Uhv-315 Power Transformer Test System Integrated Comprehensive Transformer Test Bench

After-sales Service: 1 Year
Warranty: 1 Year
Voltage: 0.1-600V
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
UHV-315
Current
0.1-200A
Power
U*I
Power Factor
0.1~0.9999
Environment
0~40℃
Volume
2500*1060*1500(mm)
Weight
100kg~1000kg
Package
Wooden Case; Carton
HS Code
9030841000
Capacity
100 Sets Per Month
🔍

Product Introduction

⚙️

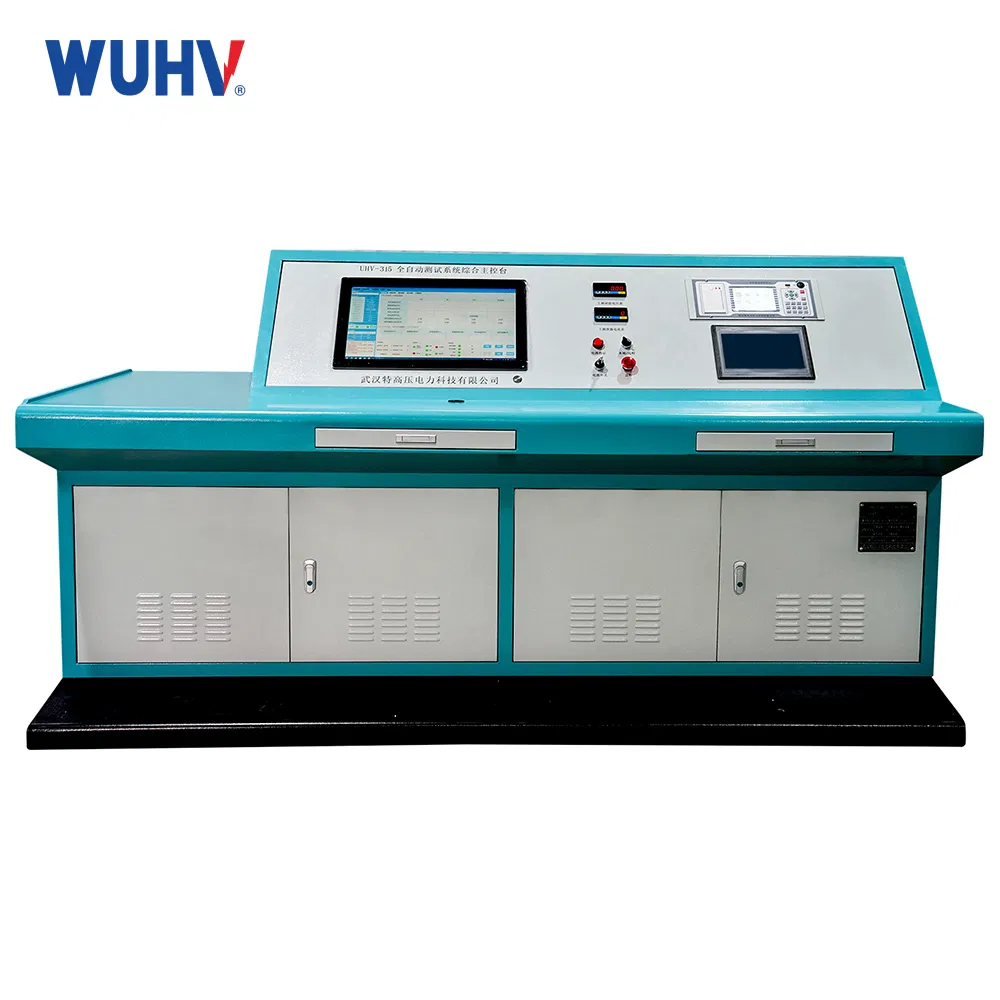

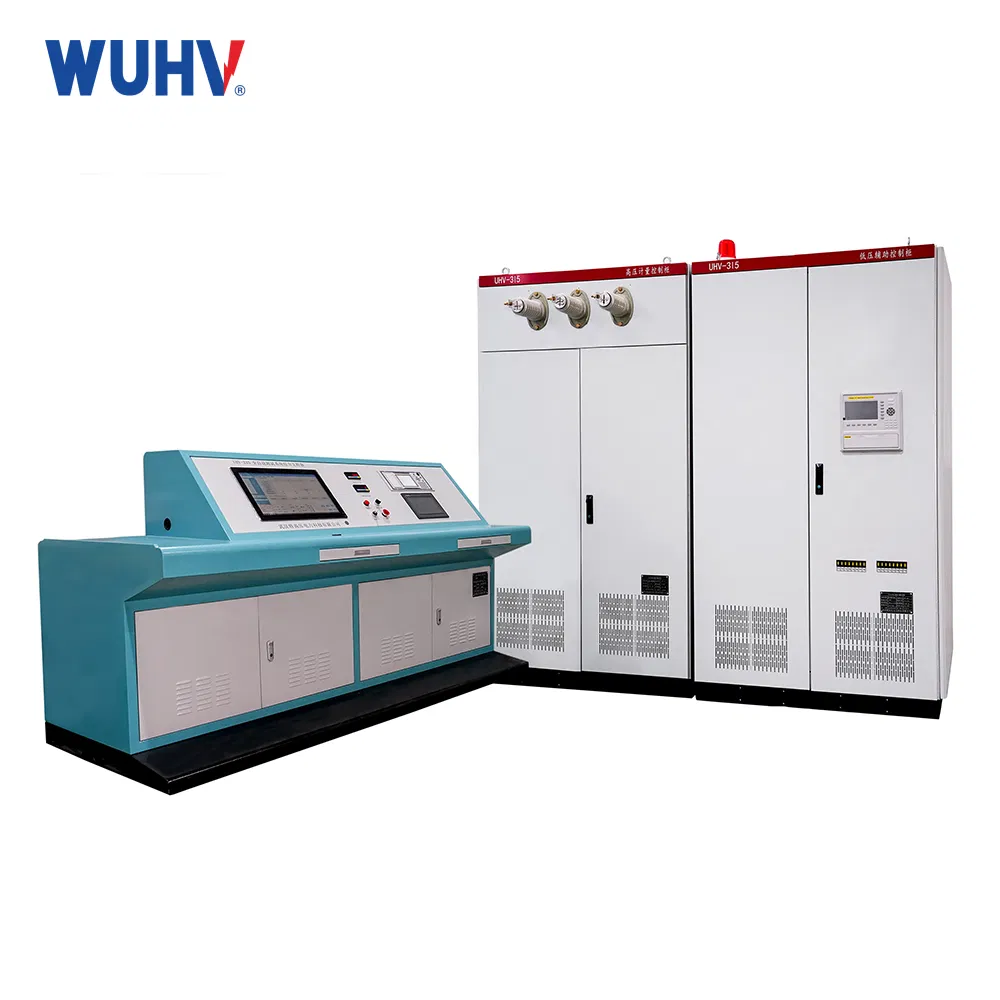

Brief introduction: The transformer test bench is designed for power and distribution transformers. It performs no-load and load characteristics tests, induced voltage tests, and frequency voltage withstand tests. Controlled by a high-end single-chip system with digital display, it automatically samples data to eliminate manual calculation errors.
Key Features:
  • Large backlit LCD screen for clear, intuitive operation.
  • Comprehensive testing: no-load loss, load loss, DC resistance, TTR, AC hipot, and induced voltage.
  • Dual display options: digital meter or direct reading pointer meter.
  • Safety integrated: Sound and light alarms for voltage withstand tests with precision timing.
📊

Technical Parameters

Project Measuring Range Relative Error
Voltage 0.1~600V ±(0.2% reading +0.1% range)
Current 0.1~200A ±(0.2% reading +0.1% range)
Power U*I ±(0.2% reading +0.1% range)
Power Factor 0.1~0.9999 3 Digital
Power Supply AC220V±10% 50Hz±2%
Use Environment Temp: 0~40ºC; Humidity: 30%~90%
🖼️

Product Visuals

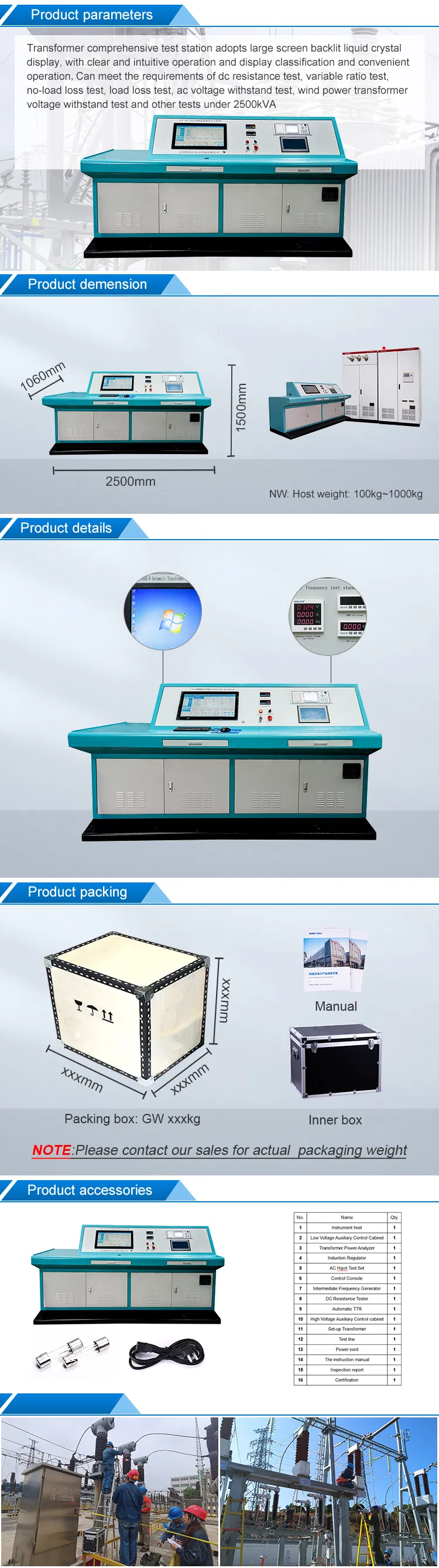

Transformer Test System Overview
Integrated Test Bench Detail
System Components
Testing Interface
Control Panel
Transformer Diagnostics
Measurement Modules

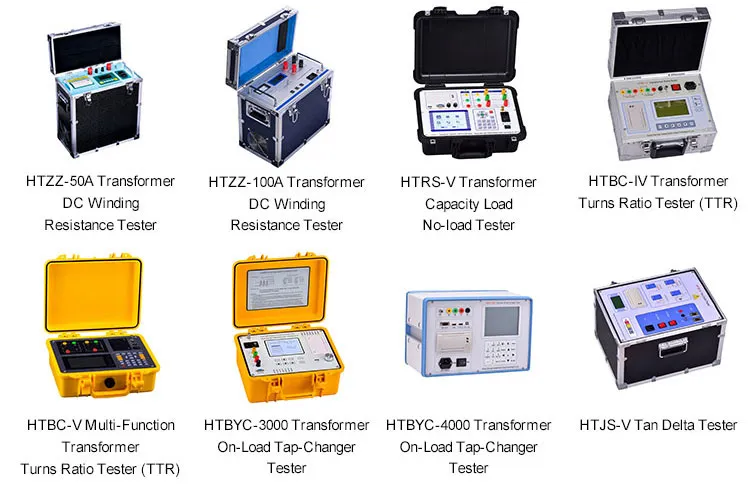

Transformer Tester Catalog
❓

Frequently Asked Questions

What types of transformers can this test bench measure?
The system is primarily designed for power transformers and distribution transformers, covering no-load and load characteristics, induced voltage, and frequency voltage withstand tests.
How does the system ensure data accuracy?
The measurement section is controlled by a high-end single-chip system. Data for no-load and short-circuit tests are sampled simultaneously, avoiding manual calculation errors found in traditional methods.
Can the equipment be customized?
Yes, the equipment can be customized according to specific requirements. Factors such as weight and specific testing modules can be adjusted based on the client's needs.
What is the standard production lead time?
Under normal circumstances, the production process takes approximately 7 working days after the order is confirmed.
How is the product protected during international shipping?
For export, goods are uniformly packed in non-fumigation wooden boxes or heavy-duty cartons to ensure safety during transit.
What kind of after-sales support is available?
We provide a one-year warranty and free consulting services. Support is delivered through various methods, including email, video calls, and technical door-to-door assistance.
